Product Overview

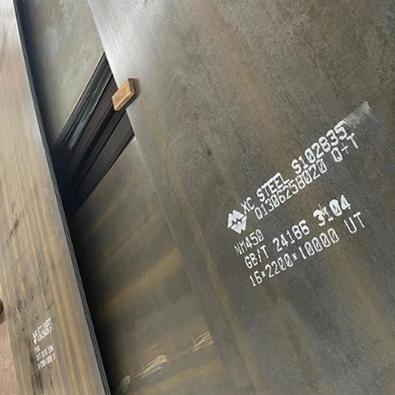

NM450 Abrasion Resistant Steel Plate is a quenched and tempered wear-resistant steel plate with a nominal hardness of 450 HBW. It offers excellent abrasion resistance, high strength, and good weldability for mining, construction, cement, quarrying, and heavy material handling equipment.
Technical Specifications
|
Item |
Specification |
|
Product Grade |
NM360 |
|
Standard |
GB/T 24186 |
|
Available Thickness |
3-100 mm |
|
Available Width |
1,500-2,500 mm |
|
Available Length |
3,000-12,000 mm |
|
Thickness Tolerance |
±1% |
|
Delivery Condition |
Quenched & Tempered (Q&T) |
|
Edge Type |
Mill Edge (ME), Trimmed Edge (TE) |
|
Surface Condition |
Shot Blasted, Painted or Oiled upon request |
Chemical Composition
|
Steel Grade |
Thickness |
Grade Level |
Chemical Composition Wt% |
||||||||
|
C |
Si |
Mn |
P |
S |
Mo |
Cr |
Ni |
B |
|||
|
Max |
|||||||||||
|
NM 360 |
≤50 |
A－E,L |
0.20 |
0.60 |
1.60 |
0.025 |
0.015 |
0.50 |
1.00 |
0.80 |
0.004 |
|
51-100 |
A,B |
0.25 |
0.60 |
1.60 |
0.020 |
0.010 |
0.50 |
1.20 |
1.00 |
0.004 |
|
Key Benefits
450 HBW nominal hardness provides excellent resistance against sliding and impact abrasion, helping extend component service life.
High yield and tensile strength allows thinner plate selection, reducing equipment weight and steel consumption.
Good weldability simplifies fabrication using standard low-hydrogen welding procedures.
Wide thickness range supports procurement for both light-duty liners and heavy structural wear components.
Typical Applications
- Dump truck bodies
- Excavator buckets
- Wheel loader buckets
- Crusher liners
- Chutes and hoppers
- Conveyor transfer liners
Processing Services
Flame Cutting Suitable for thick plate profile cutting.
Plasma Cutting Provides accurate cutting with good productivity.
Laser Cutting Produces high-precision parts with clean edges.
Waterjet Cutting Cold cutting process with no heat-affected zone.
CNC Profile Cutting Custom components manufactured directly from CAD drawings.
Beveling Prepares welding edges for fabrication.
Drilling Produces accurate bolt and assembly holes.
Bending Cold forming available using appropriate bending radius.
Surface Blasting Improves surface cleanliness before coating or fabrication.
Quality Assurance
Inspection Process
Raw material chemical composition verification
Steelmaking process control
Plate thickness measurement
Width and length dimensional inspection
Flatness inspection
Surface defect inspection
Brinell hardness test (HBW)
Tensile strength test
Yield strength test
Elongation test
Charpy V-notch impact test at -20°C
Ultrasonic Testing (UT) upon request
Final visual inspection before shipment
Certifications
|
Certification |
Meaning |
|
ISO 9001:2015 |
Quality Management System |
|
ISO 14001:2015 |
Environmental Management System |
|
GB/T 24186 |
Chinese standard for abrasion resistant steel plates |
|
EN 10204 3.1 |
Mill Test Certificate with production test results |
Packaging & Shipping
Export Packing: Steel straps, wooden supports, edge protection, and export-grade seaworthy packing.
Rust Protection: Oiled, painted, or temporary anti-rust coating available upon request.
Loading Method: Bundled or loose loading by forklift and overhead crane; container or bulk vessel loading.
Container Options: 20GP, 40GP, 40HQ depending on plate dimensions.
Shipping Method: Ocean freight (FCL/LCL), railway freight, or air freight for samples.
Marking: Heat number, plate size, grade, and customer identification clearly marked.
FAQ
