Product Overview

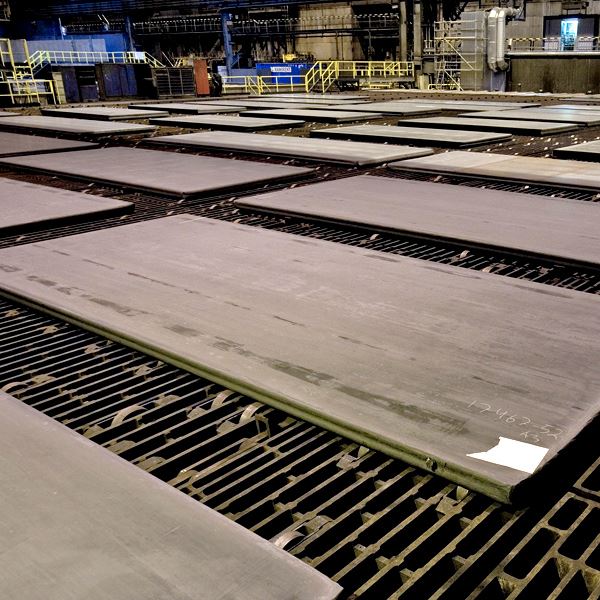

EN 10025 S355J2W Corten Steel Plates are atmospheric corrosion-resistant structural steel plates manufactured to EN 10025-5. With excellent weathering performance, weldability, and impact toughness, they are widely used for bridges, railway vehicles, containers, outdoor structures, and architectural applications.
Technical Specifications
|
Item |
Specification |
|
Product Grade |
S355J2W (+N), Steel No. 1.8963 |
|
Standard |
EN 10025-5:2004 |
|
Available Thickness |
3–150 mm |
|
Available Width |
1,000–3,500 mm |
|
Available Length |
3,000–18,000 mm |
|
Thickness Tolerance |
±1% (or according to EN 10029 upon request) |
|
Delivery Condition |
Hot Rolled (+AR), Normalized Rolling (+N) |
|
Edge Type |
Mill Edge (ME), Trimmed Edge (TE) |
|
Surface Condition |
As Rolled, Shot Blasted, Shop Primer Coated (Optional) |
Chemical Composition
|
C |
Si |
Mn |
P |
S |
Cr |
Cu |
CEV |
|
Max 0.16 |
Max 0.5 |
0.5 - 1.5 |
Max 0.03 |
Max 0.03 |
0.4 - 0.8 |
0.25 - 0.55 |
Max 0.52 |
Mechanical Properties
|
Nominal thickness (mm): |
to 3 |
3 - 100 |
100 - 150 |
|
Rm - Tensile strength (MPa) |
510-680 |
470-630 |
450-600 |
|
Nominal thickness (mm): |
to 16 |
16 - 40 |
40 - 63 |
63 - 80 |
80 - 100 |
100 - 150 |
|
ReH - Minimum yield strength (MPa) |
355 |
345 |
335 |
325 |
315 |
295 |
|
KV - Impact energy (J) longitud., |
-20° |
0° |
|
Nominal thickness (mm): |
1.5 - 2 |
2 - 2.5 |
2.5 - 3 |
|
A - Min. elongation Lo = 80 mm (%) |
16 |
17 |
18 |
|
Nominal thickness (mm): |
3 - 40 |
40 - 63 |
63 - 100 |
100 - 150 |
|
A - Min. elongation Lo = 5,65 √ So (%) |
22 |
21 |
20 |
18 |
Typical Applications
- Highway bridges
- Railway freight wagons
- Shipping containers
- Transmission towers
- Architectural facades
- Outdoor steel sculptures
Processing Services
CNC Cutting - Plasma, laser, flame, and waterjet cutting according to customer drawings.
Plate Leveling - Improves flatness before fabrication.
Beveling - Edge preparation for welding applications.
Drilling & Punching - Precision hole processing for structural assemblies.
Bending & Forming - Cold forming within recommended processing limits.
Shot Blasting & Primer Coating - Optional surface preparation for transportation or fabrication.
Steel Marking - Heat number, grade, and customer identification marking.
Quality Assurance
Inspection Process
Raw Material Verification
Chemical Composition Analysis (Spectrometer)
Tensile Strength Test
Yield Strength Test
Elongation Test
Charpy V-Notch Impact Test (-20°C)
Dimensional Inspection
Surface Quality Inspection
Flatness Inspection
Ultrasonic Testing (optional)
Positive Material Identification (PMI, optional)
Mill Test Certificate Verification
Certifications
|
Certification |
Meaning |
|
ISO 9001:2000 |
Quality Management System |
|
ISO 14001:2004 |
Environmental Management System |
|
EN 10204 3.1 |
Mill Test Certificate issued by manufacturer |
|
EN 10204 3.2 |
Third-party witnessed inspection certificate |
|
CE Marking (where applicable) |
Compliance with applicable European regulations |
Packaging & Shipping
Export Packing - Steel strips bundling with steel tags and waterproof wrapping.
Rust Protection - Moisture-proof covering; optional temporary protective oil or shop primer.
Loading Method - Steel loading by overhead crane with nylon slings to avoid edge damage.
Container Loading - 20GP, 40GP, 40HC, or break bulk vessel according to plate dimensions.
Shipping Method - Sea freight, railway freight, or multimodal transportation.
Identification - Each plate marked with grade, size, heat number, and production batch.
Documents Provided - Commercial Invoice, Packing List, B/L, MTC EN 10204 3.1, Certificate of Origin upon request.
