Overview
NK Hull Structure Plate is manufactured for shipbuilding and offshore structural applications requiring compliance with ClassNK (Nippon Kaiji Kyokai) classification requirements. Available in both normal-strength and high-strength grades, these steel plates are suitable for hull structures, decks, bulkheads, bottoms, and other primary load-bearing components.











Specifications
NK Standard Marine Steel Plate Mechanical Property
|
|
Thickness(mm) |
Min. Yield Strength (MPa) |
Tensile(MPa) |
Elongation (%) |
Min Impact Energy |
|||||
|
NK Grade AH32 |
8mm-50mm |
Min 315MPa |
440-590MPa |
22% |
0℃ |
34J |
||||
|
51mm-70mm |
Min 315MPa |
440-590MPa |
22% |
0℃ |
38J |
|||||
|
71mm-100mm |
Min 315MPa |
440-590MPa |
22% |
0℃ |
46J |
|||||
|
The min Impact energy is longitudinal energy |
||||||||||
|
|
Thickness(mm) |
Min. Yield Strength (MPa) |
Tensile(MPa) |
Elongation (%) |
Min Impact Energy |
|||||
|
NK Grade EH32 |
8mm-50mm |
Min 315MPa |
440-590MPa |
22 |
-40℃ |
34J |
||||
|
51mm-70mm |
Min 315MPa |
440-590MPa |
22 |
-40℃ |
38J |
|||||
|
71mm-100mm |
Min 315MPa |
440-590MPa |
22 |
-40℃ |
46J |
|||||
|
The minimum Impact energy is longitudinal energy |
||||||||||
|
Grade |
Thickness(mm) |
Min. Yield Strength (MPa) |
Tensile(MPa) |
Elongation (%) |
Min Impact Energy |
|||||
|
NK Grade AH36 |
8mm-50mm |
Min 355MPa |
490-620MPa |
21% |
0℃ |
34J |
||||
|
51mm-70mm |
Min 355MPa |
490-620MPa |
21% |
0℃ |
41J |
|||||
|
71mm-100mm |
Min 355MPa |
490-620MPa |
21% |
0℃ |
50J |
|||||
|
The min Impact energy is longitudinal energy |
||||||||||
|
Grade |
Thickness(mm) |
Min. Yield Strength (MPa) |
Tensile(MPa) |
Elongation (%) |
Min Impact Energy |
|||||
|
NK Grade EH36 |
8mm-50mm |
Min 355MPa |
490-620MPa |
21% |
-40℃ |
34J |
||||
|
51mm-70mm |
Min 355MPa |
490-620MPa |
21% |
-40℃ |
41J |
|||||
|
71mm-100mm |
Min 355MPa |
490-620MPa |
21% |
-40℃ |
50J |
|||||
|
The min Impact energy is longitudinal energy |
||||||||||
|
Grade |
Thickness(mm) |
Min. Yield Strength (MPa) |
Tensile(MPa) |
Elongation (%) |
Min Impact Energy |
|||||
|
NK Grade AH40 |
8mm-50mm |
Min 390 MPa |
510-650MPa |
20% |
0℃ |
34J |
||||
|
51mm-70mm |
Min 390 MPa |
510-650MPa |
20% |
0℃ |
41J |
|||||
|
71mm-100mm |
Min 390 MPa |
510-650MPa |
20% |
0℃ |
50J |
|||||
|
The min Impact energy is longitudinal energy |
||||||||||
|
Grade |
Thickness(mm) |
Min. Yield Strength (MPa) |
Tensile(MPa) |
Elongation (%) |
Min Impact Energy |
|||||
|
NK Grade EH40 |
8mm-50mm |
Min 390 MPa |
510-650MPa |
20% |
-40℃ |
34J |
||||
|
51mm-70mm |
Min 390 MPa |
510-650MPa |
20% |
-40℃ |
41J |
|||||
|
71mm-100mm |
Min 390 MPa |
510-650MPa |
20% |
-40℃ |
50J |
|||||
|
The min Impact energy is longitudinal energy |
||||||||||


The Grades Of NK Standard Ship Plates We Can Provide Include
|
NK Steel Plate Grade |
||||
|
General Strength |
K A |
K B |
K D |
K E |
|
High Strength |
K A32 |
K D32 |
K E32 |
K F32 |
|
K A36 |
K D36 |
K E36 |
K F36 |
|
|
K AH40 |
K DH40 |
K EH40 |
K F40 |
|
|
Extra Strength |
K A43 |
K D43 |
K E43 |
K F43 |
|
K A47 |
K D47 |
K E47 |
K F47 |
|
|
K A51 |
K D51 |
K E51 |
K F51 |
|
|
K A56 |
K D56 |
K E56 |
K F56 |
|
|
K A63 |
K D63 |
K E63 |
K F63 |
|
|
K A70 |
K D70 |
K E70 |
K F70 |
|
|
K A63N |
K D63N |
K E63N |
K F63N |
|
|
K A70N |
K D70N |
K E70N |
K F70N |
|




Equivalent Grades CoMParison
|
NK Grade |
ASTM Equivalent |
EN Equivalent |
CCS Equivalent |
LR Equivalent |
|
NK A |
ASTM A131 A |
S235JR |
CCS A |
LR A |
|
NK B |
ASTM A131 B |
S235JR |
CCS B |
LR B |
|
NK AH36 |
ASTM A131 AH36 |
S355 |
CCS AH36 |
LR AH36 |
|
NK DH36 |
ASTM A131 DH36 |
S355 |
CCS DH36 |
LR DH36 |
|
NK EH36 |
ASTM A131 EH36 |
S355 |
CCS EH36 |
LR EH36 |
Technical Performance
Refined through LF and VD vacuum degassing processes to keep S and P impurities low, helping prevent internal defects and laminations.
Controlled carbon equivalent (Ceq ≤ 0.38%) via TMCP processing provides consistent weldability and helps reduce preheating requirements during shipyard fabrication.
Offers verified Charpy V-Notch impact energy at temperatures down to -40℃ to maintain structural integrity in cold water conditions.
Advanced S-reduction and Ca-treatment deliver Z-direction performance (Z15/Z25/Z35) to prevent lamellar tearing in thick joints (≥25 mm) per ClassNK and ASTM A770.



Marine & Offshore Applications
Commercial Shipbuilding: Shell plating, strength decks, bottom structures, and side framing for bulk carriers, tankers, and container ships.
Offshore Engineering: Hull structures for FPSO, offshore platform jacket legs, and support pontoon structures.
Specialized Vessels: Ice-strengthened hulls and low-temperature storage barges using Grade E / EH Impact-tested plates.





Processing & Value-Added Services
Beveling & Edge Preparation: Factory-performed V, K, or X-shape bevel cutting to expedite on-site shipyard welding.
Custom Cutting & Profiling: Precision CNC flame and plasma cutting according to client structural CAD drawings.
Surface Pre-treatment: Automated SA 2.5 shot blasting combined with weldable shop priming (15–25 μm thickness).





Quality & Traceability
100% Non-Destructive Testing (NDT): Every plate undergoes ultrasonic testing (UT) in accordance with ASTM A578 Level B/C or ClassNK rules to ensure internal sound structure.

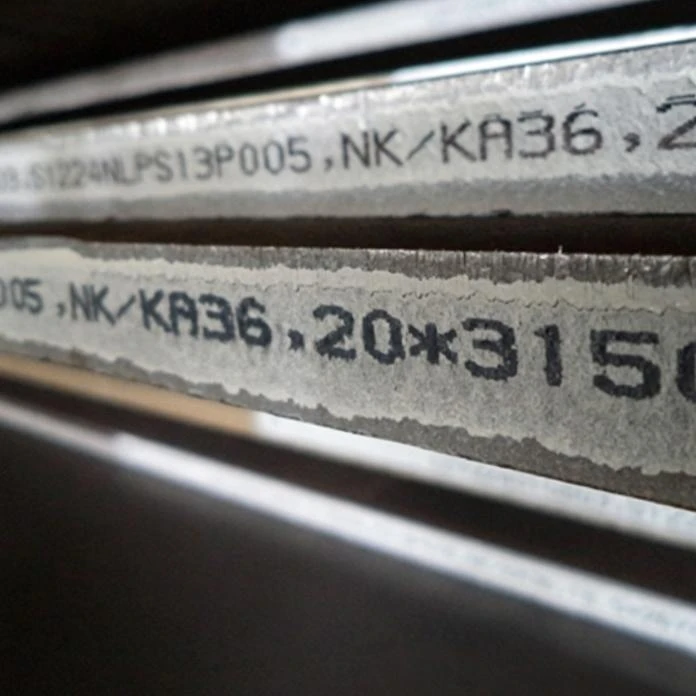

Physical Traceability: Hard-stamped with the ClassNK emblem, Heat Number, Plate Number, and Grade on the edge, matching 100% with the official EN 10204 3.2 Mill Test Certificate.



Production Facilities & Process Control
Steelmaking & Refining: Processed via 120T converter, Ladle Furnace (LF), and Vacuum Degassing (VD) to strictly control sulfur and phosphorus levels.
Rolling & Cooling: Utilizes a heavy plate rolling mill equipped with an Automated Accelerated Cooling (ACC) system to ensure uniform microstructural grain refinement and consistent mechanical performance.



Packaging & Shipping Logistics
Corrosion Protection: VCI anti-rust oil film, waterproof plastic wrapping, and edge protectors applied prior to sea freight.
Bundling & Securing: Heavy-duty steel straps with timber dunnage to prevent inter-plate friction during transit.
Flexible Marine Logistics: Containerized loading for standard sizes (under 11.8m) or breakbulk/RO-RO vessels for extra-wide and long plates.
