Overview

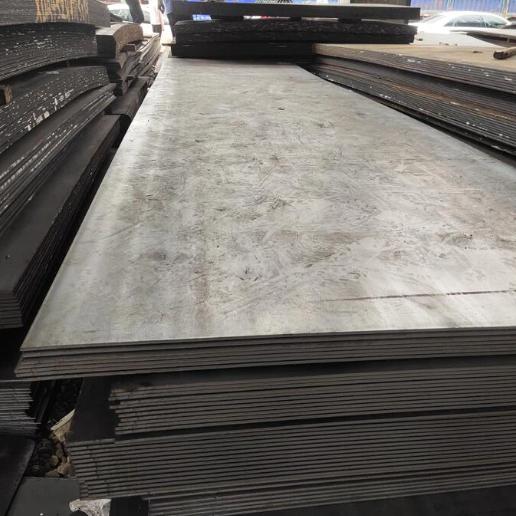

ASTM A517 Pressure Vessel Steel Plate is a quenched and tempered high-strength alloy steel plate manufactured in accordance with ASTM A517/A517M specifications.
Available in multiple grades, thicknesses, and customized dimensions, ASTM A517 steel plate offers good weldability and fabrication performance for cutting, welding, and machining.
Specifications
Chemical Composition (Weight %) Of ASTM A517 Steel
|
Element |
Grade A |
Grade B |
Grade E |
Grade F |
Grade H |
Grade P |
Grade Q |
Grade S |
|
Carbon (C) |
0.15-0.21 |
0.15-0.21 |
0.12-0.20 |
0.10-0.20 |
0.12-0.21 |
0.12-0.21 |
0.14-0.21 |
0.10-0.20 |
|
Manganese (Mn) |
0.80-1.10 |
0.70-1.00 |
0.40-0.70 |
0.60-1.00 |
0.95-1.30 |
0.45-0.70 |
0.95-1.30 |
1.10-1.50 |
|
Phosphorus (P) |
≤0.035 |
≤0.035 |
≤0.035 |
≤0.035 |
≤0.035 |
≤0.035 |
≤0.035 |
≤0.035 |
|
Sulfur (S) |
≤0.035 |
≤0.035 |
≤0.035 |
≤0.035 |
≤0.035 |
≤0.035 |
≤0.035 |
≤0.035 |
|
Silicon (Si) |
0.20-0.35 |
0.20-0.35 |
0.20-0.35 |
0.20-0.35 |
0.20-0.35 |
0.20-0.35 |
0.20-0.35 |
0.20-0.35 |
|
Molybdenum (Mo) |
0.18-0.28 |
0.15-0.25 |
0.40-0.60 |
0.40-0.60 |
0.20-0.30 |
0.45-0.60 |
0.40-0.60 |
0.10-0.35 |
|
Boron (B) |
0.001-0.005 |
0.001-0.005 |
0.001-0.005 |
0.001-0.005 |
0.001-0.005 |
0.001-0.005 |
0.001-0.005 |
0.001-0.005 |
|
Vanadium (V) |
0.03-0.08 |
0.03-0.08 |
0.03-0.08 |
0.03-0.08 |
0.03-0.08 |
0.03-0.08 |
0.03-0.08 |
0.03-0.08 |
Mechanical Properties Of ASTM A517 Steel
|
Property |
Requirement (≤2.50 in. / 63.5 mm thick) |
Requirement (>2.50-6 in. / 63.5-152.4 mm thick) |
Significance |
|
Tensile Strength |
115-135 ksi (790-930 MPa) |
105-135 ksi (724-930 MPa) |
Maximum stress the material can withstand while being stretched, ensuring structural stability under high pressure |
|
Yield Strength (Min) |
100 ksi (690 MPa) |
90 ksi (621 MPa) |
Stress at which the material begins to deform plastically, key for design limits in pressure vessel applications |
|
Elongation (Min) |
16-18% (varies by grade) |
16-18% (varies by grade) |
Measure of ductility, indicating the ability to deform before fracture, reducing the risk of sudden failure |
|
Charpy V-Notch Impact Test |
Minimum values specified at various temperatures (e.g., -50 °F / -45 °C) |
Minimum values specified at various temperatures (e.g., -50 °F / -45 °C) |
Ensures excellent toughness, especially in low-temperature environments, preventing brittle fracture |
|
Brinell Hardness |
235-293 HB |
235-293 HB |
Resistance to surface indentation and wear, extending service life in harsh industrial conditions |
International Equivalent Grades Of ASTM A517 Steel
|
Standard |
Equivalent Grade |
Description |
|
EN (Europe) |
S690Q / S700MC |
High-strength quenched & tempered steel |
|
DIN (Germany) |
1.8928 |
High-strength structural steel |
|
JIS (Japan) |
SHY685 / HW685 |
High-strength pressure vessel steel |
|
GB (China) |
Q690D / Q690E |
High-strength low alloy steel |
Performance & Metallurgical Characteristics
Produced via controlled quenching and tempering to achieve a 100 ksi (690 MPa) minimum yield strength, allowing thinner plate designs for heavy-load equipment.
Formulated with optimized alloying to maintain Charpy V-notch impact toughness at temperatures down to -40 °C.
Maintained at controlled carbon equivalent (CEV) levels to support standard welding methods like SAW and SMAW with appropriate preheating protocols.
Refined through secondary ladle processing (LF+VD/RH) to reduce steel impurities and ensure consistent mechanical properties across each plate.
Typical Applications
Pressure Vessels & Boilers: Storage spheres, liquefied gas tanks, and high-pressure reactors.
Energy & Offshore: Hydroelectric penstocks, offshore platform structural components, and subsea structures.
Heavy Equipment: Mining truck bodies, crane booms, and heavy transport chassis requiring high payload-to-weight ratios.
Quality Assurance
100% Heat Traceability: Full documentation from LF+VD/RH refined ladle steelmaking to final plate cutting. Heat number, plate number, and standard are hard-stamped on every plate.
Non-Destructive Testing (NDT): Ultrasonic testing (UT) performed in accordance with ASTM A578 Level A/B/C or ASTM A435.
Mechanical & Chemical Testing: Full batch testing including tensile, Charpy V-notch impact, bend, and Z-axis (Z15/Z25/Z35) performance testing.
Third-Party Inspection (TPI): Fully compliant with independent inspection by SGS, TÜV, Bureau Veritas (BV), or DNV for EN 10204 3.2 certification.
Export Packaging & Protection Standards
Surface Protection: Application of anti-rust oils or water-based protective coatings.
Edge & Corner Guarding: Heavy-duty steel or plastics protectors prevent edge damage during crane lifting and container loading.
Secure Strapping: Steel-band strapping with wooden skids or dunnage, tailored for flat-rack, open-top, or breakbulk shipping.
Loading Supervision: Complete photo and video documentation of container loading, weight distribution, and lashing prior to dispatch.
Order & Technical Support Flow
Inquiry & RFQ Review: Submit your grade, dimensions, and quantity. Our metallurgical engineers review tolerances and standards within 12 hours.
Technical Proposal & Quote: We issue a formal offer including MTR samples, processing options, and inspection hold points.
Production & Testing: Steelmaking via LF+VD/RH, rolling, Q&T heat treatment, and full ultrasonic inspection.
Third-Party Inspection (TPI): Coordination with SGS, TÜV, BV, or DNV for on-site testing and EN 10204 3.2 endorsement.
Packaging & Dispatch: Customs documentation, container loading photos, and original MTR delivery.
